Introduction
Choosing the right range hood size affects more than kitchen appearance: it determines how well smoke, grease, heat, and cooking pollutants are captured, and whether an installation aligns with common North American code expectations. This article explains the key size rules that matter in practice, including hood width relative to the cooktop, recommended overhang for better capture, and the clearance and performance considerations often tied to local regulations. By the end, readers will understand how sizing influences ventilation efficiency, safety, and compliance, making it easier to evaluate specifications before selecting or installing a hood.
Why Range Hood Size Matters in North American Code
Proper specification of range hood size is a critical intersection of mechanical engineering, indoor air quality (IAQ) management, and building code compliance in North America. While aesthetics frequently drive consumer preferences, the dimensional footprint of a ventilation unit dictates its fundamental efficacy in capturing thermal plumes, volatile organic compounds (VOCs), and particulate matter generated during cooking.
Capture area and airflow
The primary function of a range hood relies on its capture area—the physical volumetric space that intersects the rising thermal plume. Because cooking effluents expand as they rise, a hood that merely matches the width of the cooking surface often fails to capture the outer edges of the plume. Industry best practices dictate that the hood canopy should extend a minimum of 3 inches beyond the cooktop on open sides. Specifying a range hood size with this overlapping geometry increases the effective capture volume, compensating for cross-drafts and rapid thermal expansion.
Safety and performance impact
Undersized ventilation directly correlates with compromised IAQ and increased safety liabilities. When the physical footprint is insufficient, grease-laden vapors bypass the baffle or mesh filters and deposit onto adjacent cabinetry, ceilings, and HVAC return vents, creating long-term fire hazards. Empirical testing demonstrates that appropriately sized hoods achieve capture efficiencies of 80% to 90%, whereas undersized units operating at identical cubic feet per minute (CFM) extraction rates may capture less than 50% of the effluent. This highlights that motor power cannot overcome a deficient physical capture area.
North American Range Hood Size Standards
North American range hood size standards have evolved to align with standard appliance dimensions and modular cabinetry systems, creating a highly standardized dimensional matrix for architects, builders, and specifiers.
Width, depth, and mounting height
Standard widths align directly with conventional appliance sizing. They are primarily manufactured in 30-inch and 36-inch configurations for standard residential applications, scaling up to 42-inch, 48-inch, and 60-inch widths for professional-style ranges. Depth is equally critical but highly variable based on the installation type. Standard under-cabinet hoods typically feature a depth of 20 to 22 inches, whereas professional-grade wall canopies require 24 to 27 inches to adequately cover high-output front burners. Mounting height, structurally dictated by the hood's depth and the manufacturer's thermal safety ratings, generally mandates a clearance of 24 to 30 inches above electric cooktops and 30 to 36 inches above gas ranges.
| Range Hood Type | Typical Widths (inches) | Typical Depth (inches) | Recommended Mounting Height (inches) |
|---|---|---|---|
| Standard Under-Cabinet | 30, 36 | 18 - 22 | 24 - 30 |
| Professional Wall Canopy | 36, 42, 48 | 24 - 27 | 30 - 36 |
| Island Mount | 36, 42, 48, 54 | 27 - 30 | 30 - 36 |
| Custom Insert / Liner | 28, 34, 40, 46 | 18 - 22 | 30 - 36 |
U.S. and Canadian practice
While the United States and Canada share deeply integrated appliance manufacturing supply chains, regional construction practices influence sizing nuances. In Canadian markets, stringent building envelopes and energy codes often drive the adoption of highly efficient, precisely sized hoods that integrate seamlessly with heat recovery ventilators (HRVs). In the U.S., the prevalence of high-BTU, commercial-style ranges in luxury residential builds frequently pushes baseline specifications toward 42-inch and 48-inch canopies. This demands corresponding adjustments in upper cabinetry layouts, which typically transition from standard 12-inch depths to custom 15-inch or larger enclosures to visually balance the massive hood footprint.
Codes and Technical Requirements That Affect Size
Navigating the regulatory landscape requires an understanding of how physical range hood size interacts with mechanical codes, structural framing, and localized safety mandates across different jurisdictions.
IRC, IMC, IBC, NFPA, and local codes
The International Residential Code (IRC) and International Mechanical Code (IMC) form the foundation of North American ventilation requirements. While these codes do not explicitly mandate a specific range hood size in inches, they strictly regulate exhaust rates, clearance to combustibles, and ducting—all of which dictate the physical dimensions of the appliance. Furthermore, for mixed-use or high-density residential developments, National Fire Protection Association (NFPA) standards, particularly NFPA 96, may influence the required canopy overhang and construction materials. This effectively forces the specification of larger, commercial-grade dimensions to achieve compliance.
Airflow, make-up air, and duct sizing
The physical size of the hood dictates the size of the internal blower, which in turn triggers stringent make-up air (MUA) requirements. Under IRC Section M1503.6, any exhaust system capable of exhausting in excess of 400 CFM must be provided with supplementary make-up air. Because larger hoods (e.g., 42 inches and above) inherently require blowers rated between 600 and 1,200 CFM to maintain adequate face velocity across their expanded capture areas, specifying a larger size automatically entails designing a mechanized MUA system. Additionally, larger hoods necessitate larger duct diameters—typically 8-inch to 10-inch round ducts—requiring careful coordination with floor joist and wall stud spacing to accommodate the infrastructure.
Nominal vs actual hood dimensions
Specifiers must account for the critical distinction between nominal and actual dimensions to avoid costly installation conflicts. A standard 30-inch range hood size is nominally marketed to align with a 30-inch cooktop and fit within a 30-inch cabinet opening. However, the actual manufactured width is universally undersized by a fraction of an inch to ensure a frictionless fit during installation.
| Nominal Hood Size | Actual Manufactured Width | Cabinet Opening Required |
|---|---|---|
| 30 inches | 29.875 inches (approx.) | 30.00 inches |
| 36 inches | 35.875 inches (approx.) | 36.00 inches |
| 42 inches | 41.875 inches (approx.) | 42.00 inches |
| 48 inches | 47.875 inches (approx.) | 48.00 inches |
How to Evaluate the Right Range Hood Size
Selecting the optimal range hood size requires synthesizing architectural constraints, appliance specifications, and budgetary parameters. The evaluation process demands precise spatial planning to ensure both functional efficacy and visual symmetry within the kitchen geometry.
Match hood size to cooktop and layout
The foundational rule of sizing requires the hood to be at least as wide as the cooking surface it serves. For standard wall-mounted configurations flanked by adjacent upper cabinetry, specifying a hood width identical to the cooktop (e.g., a 36-inch hood over a 36-inch range) is standard practice, as the cabinets help channel the thermal plume upward. However, for island applications where no adjacent structures exist to restrict cross-drafts, the range hood size must be upsized by a minimum of 6 inches overall (3 inches per side). Therefore, a 36-inch island cooktop necessitates a 42-inch island range hood to maintain equivalent capture efficiency.
Type, cost, and retrofit trade-offs
Increasing the range hood size introduces cascading cost and retrofit complexities. Upgrading from a standard 30-inch under-cabinet unit to a 36-inch or 42-inch professional canopy in a retrofit scenario typically requires removing or modifying upper cabinetry, altering the backsplash, and upsizing the ductwork. These modifications can easily add $500 to $2,500 in labor and material costs, independent of the appliance price. Specifiers must evaluate whether the performance benefits of a larger capture area justify the structural modifications, particularly in multi-family retrofits where altering existing duct penetrations may be structurally prohibited or cost-prohibitive.

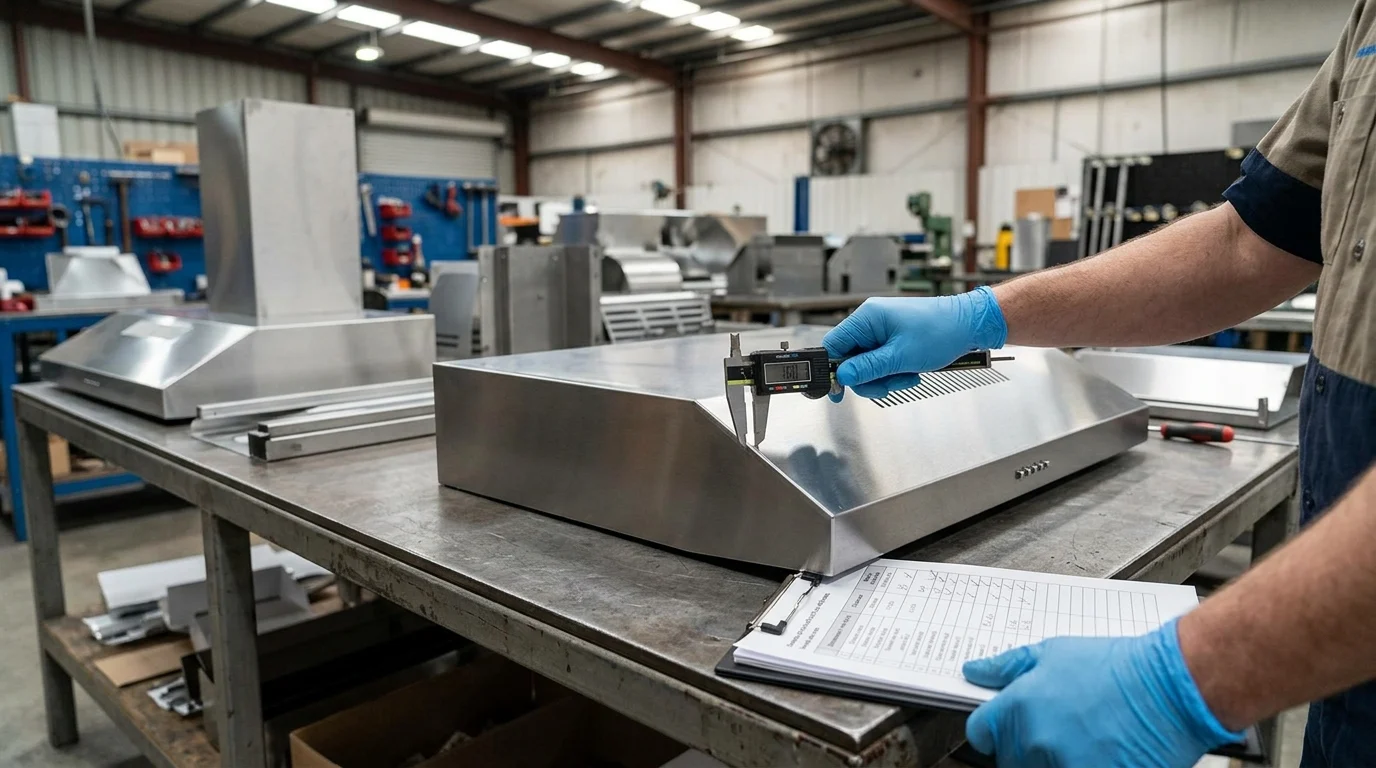

Decision Framework for Selecting Range Hood Size
Establishing a definitive decision framework mitigates the risk of specification errors, ensuring the final range hood size satisfies regulatory mandates, mechanical constraints, and end-user expectations.
Balancing code, performance, and fit
The specification process is an exercise in balancing competing variables. A common industry rule of thumb dictates 100 CFM of extraction power for every 10,000 BTUs of gas cooking output. This directly informs the blower size and, consequently, the minimum canopy volume required to house the internal components. Achieving equilibrium requires ensuring the selected size provides a minimum of 65% depth coverage for the front burners—where the majority of high-heat cooking occurs—while remaining within the threshold of the building's existing or planned make-up air capabilities.
Final selection checklist
To finalize the specification, industry professionals should employ a rigorous verification checklist. First, verify the nominal cooktop width and determine if the layout dictates an identical or oversized hood width (e.g., adding 6 inches for island units). Second, confirm the maximum allowable depth to prevent ergonomic hazards, ensuring the hood does not protrude excessively into the user's workspace. Third, calculate the required CFM and identify whether the chosen hood size triggers the 400 CFM make-up air threshold. Finally, validate the duct routing diameter against the hood's discharge collar, ensuring structural framing accommodates the necessary 6-inch, 8-inch, or 10-inch ductwork without requiring restrictive transitions that would compromise airflow and increase static pressure.
Key Takeaways
- The most important conclusions and rationale for range hood size
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
What range hood width is usually required in North America?
Match the cooktop at minimum: 30-inch hoods for 30-inch ranges and 36-inch hoods for 36-inch ranges. For better capture, choose a hood about 3 inches wider on each open side when layout allows.
How deep should a range hood be for good smoke capture?
Under-cabinet models are typically 18 to 22 inches deep. Professional wall hoods usually need 24 to 27 inches so the canopy covers the front burners more effectively.
What mounting height is commonly used by code and manufacturers?
A practical guide is 24 to 30 inches above electric cooktops and 30 to 36 inches above gas ranges. Always confirm the exact clearance in the hood manufacturer’s installation manual.
Can a high-CFM hood make up for a hood that is too small?
No. More airflow cannot fully fix poor capture area. An undersized hood lets smoke and grease escape at the edges, so proper width and depth should be chosen before focusing on CFM.
